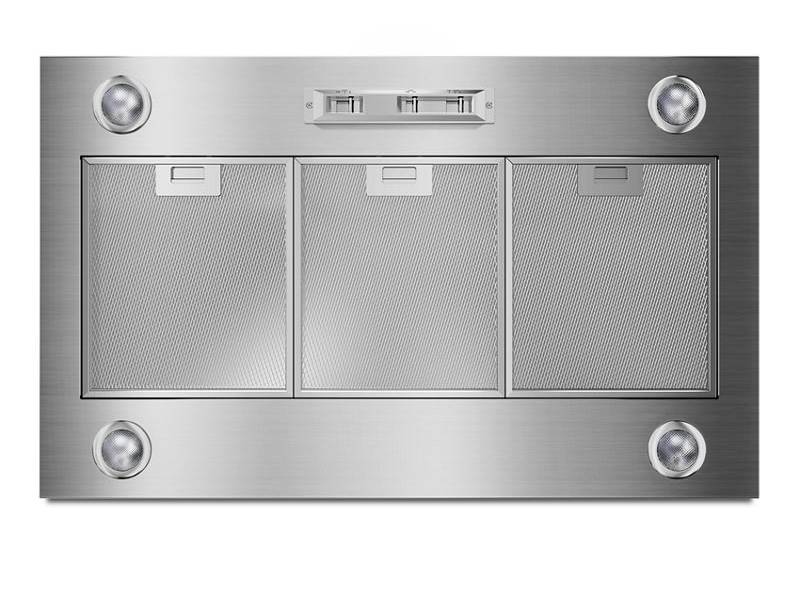

36" Whirlpool Custom Hood Liner - UVL6036JSS
Key Features
- 3-Speed Hidden Slide Control
- 585-1170 CFM Motor Class
- 105,000 BTU Rating
- Four LED Lights with Night Light Setting
- Removable Filters
Product Description

36" Custom Hood Liner
This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.
Features
3-Speed Hidden Slide Control
Makes it easy to adjust fan speed while cooking and matches your kitchen style with a clean look.
585-1170 CFM Motor Class
provides powerful airflow to match the high performance of commercial-style ranges and rangetops. This hood can be installed with your choice of a 585 or 1170 CFM motor (sold separately).
105,000 BTU Rating
Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Filters
Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
Ventilation Details | |
---|---|
HVI (CFM HS Horizontal) | N/A |
HVI (CFM HS Vertical) | 510/960 |
Lighting Control Type | Slider |
Night Light | No |
Number of Night Light Settings | 1 |
Task Light Type | LED |
Auto Function | No |
BTU Threshold | 65K/105K |
Duct Direction | Vertical |
Duct Length | 13 |
Duct Outlet Size | 25.40 cm, 10 in |
Duct Type | Round |
Exhaust Vent Location | Top |
Filters | Grease Filters |
Task Lighting | Yes |
Vent Fan Location | Side |
Venting | Exterior |
Certifications | |
Star K Certified | No |
Energy Star | No |

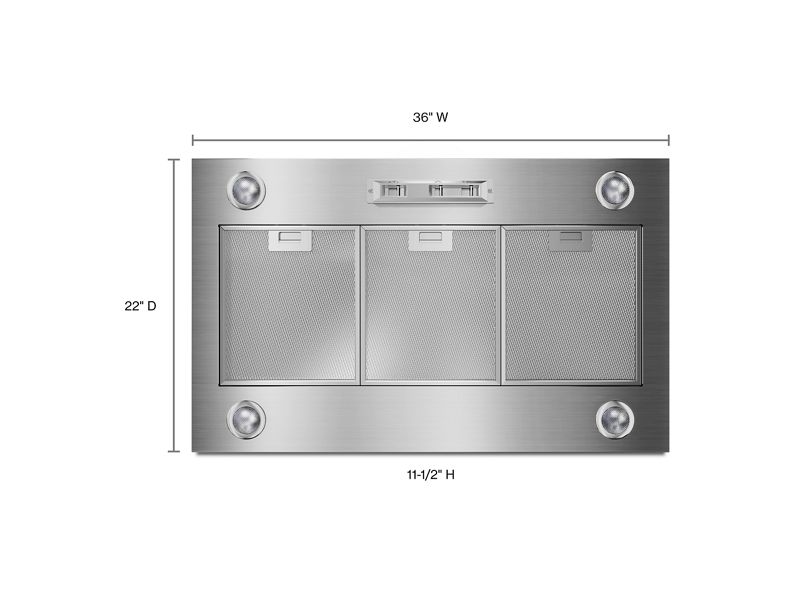

Dimensions | |
Canopy Height | 29.21 cm, 11-1/2 in |
Common Size | 91.44 cm, 36 in |
Depth | 55.88 cm, 22 in |
Gross Weight | 20.20 kg, 44-53/100 lbs |
Maximum Height | 91.44 cm, 36 in |
Minimum Height | 76.20 cm, 30 in |
Net Weight | 12.80 kg, 28-11/50 lbs |
Controls | |
Control Location | Hidden |
Control Type | Slide Controls |
Number of Vent Speeds | 3 |
Details | |
Blower Type | Centrifugal |
Hood Type | Under Cabinet |
Electrical | |
Amps | 3-18/25 |
Hz | 60 |
Power Cord Included | No |
Volts | 120 |
Watts | 446 |
