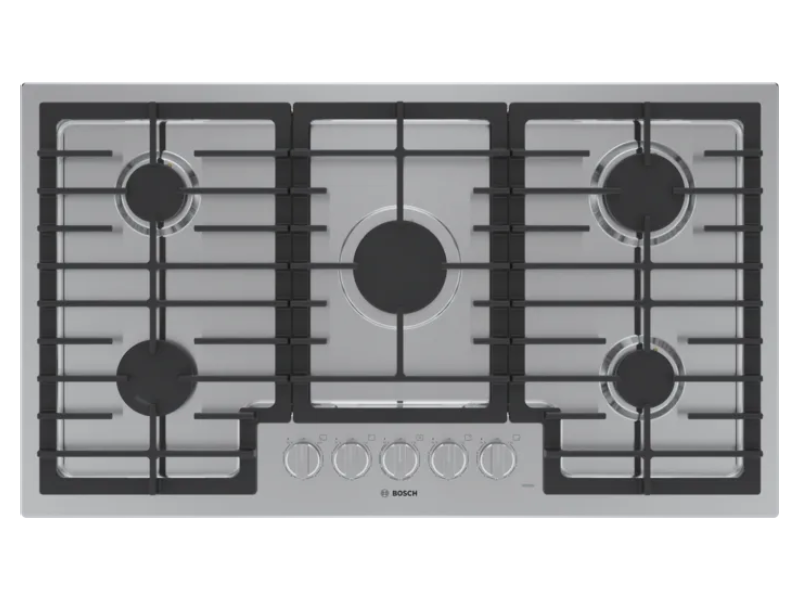

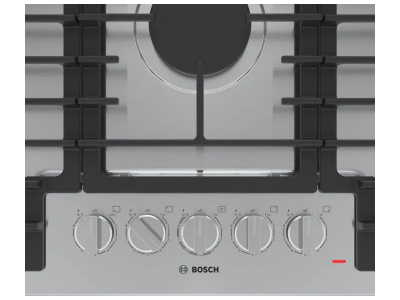

36" Bosch 500 Series 5 Burner Gas Cooktop - NGM5659UC
Literature
Features & Benefits

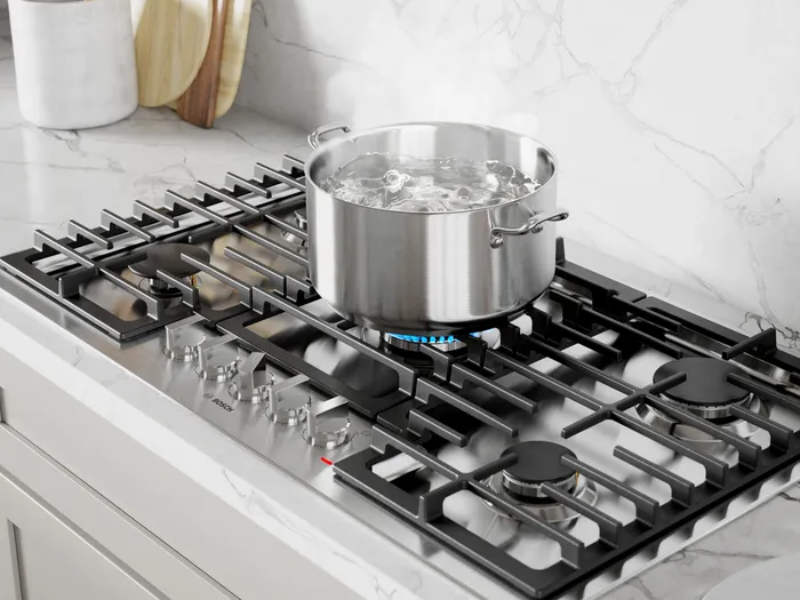

- Five powerful high efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

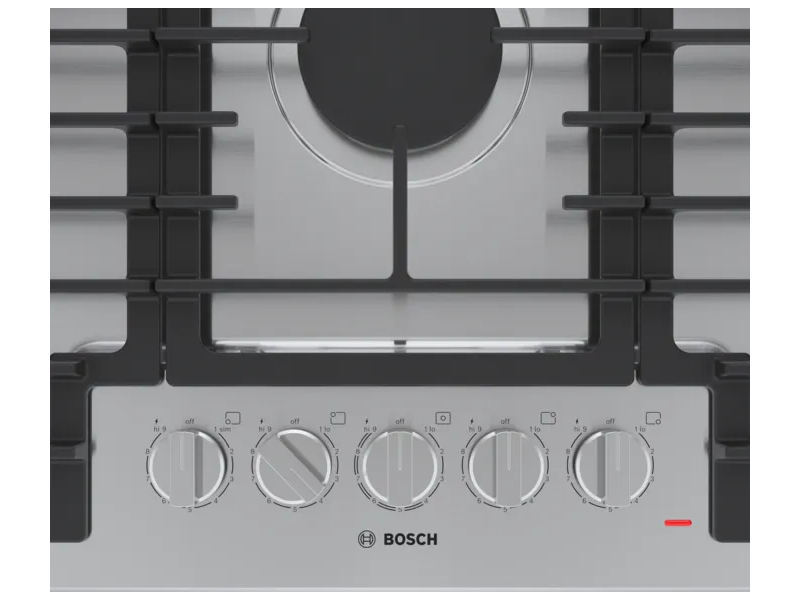

- Distinctive red LED light indicates if burners are on.

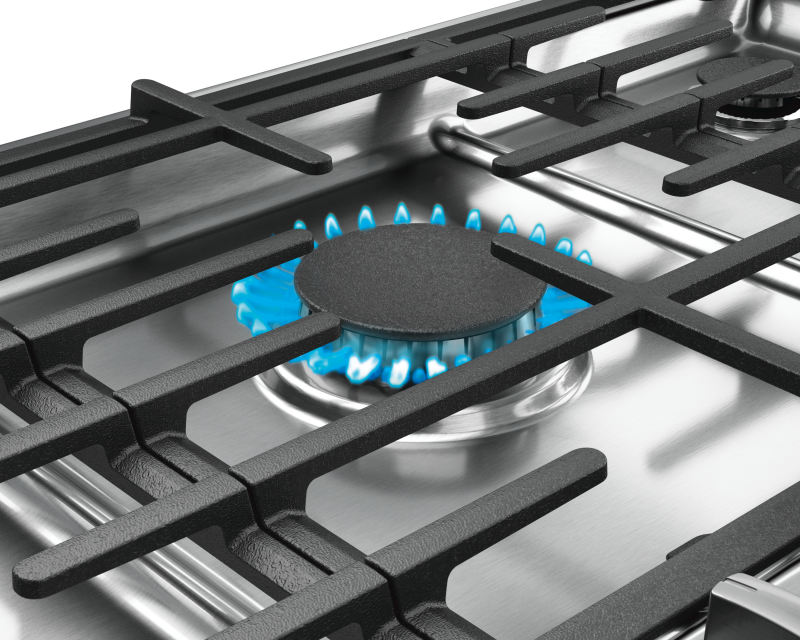

- Continuous cast iron grates make it easier to slide pots from one burner to another without lifting.
- Seamless, one-piece stainless steel design makes clean-up simple.

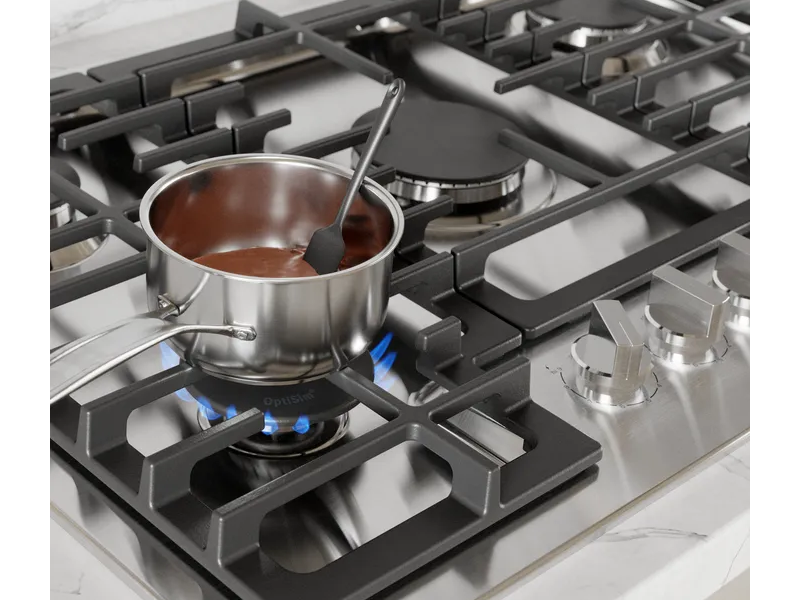

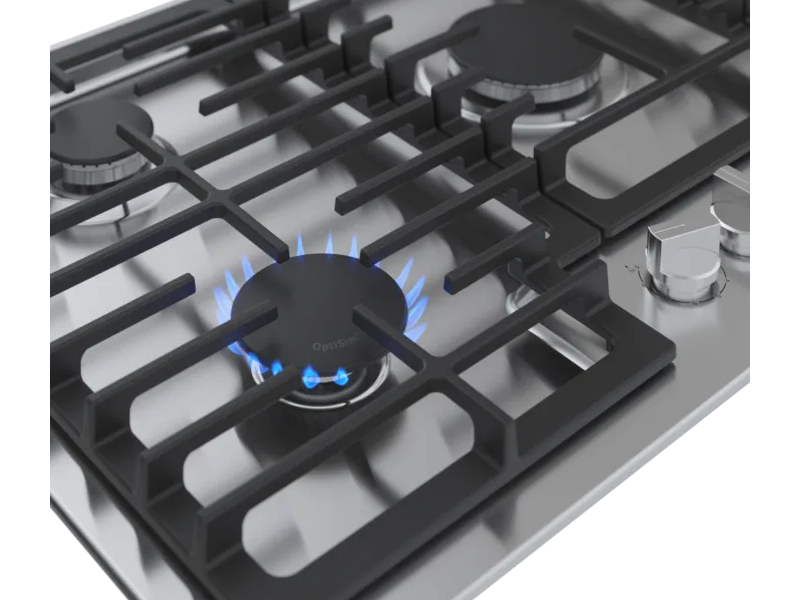

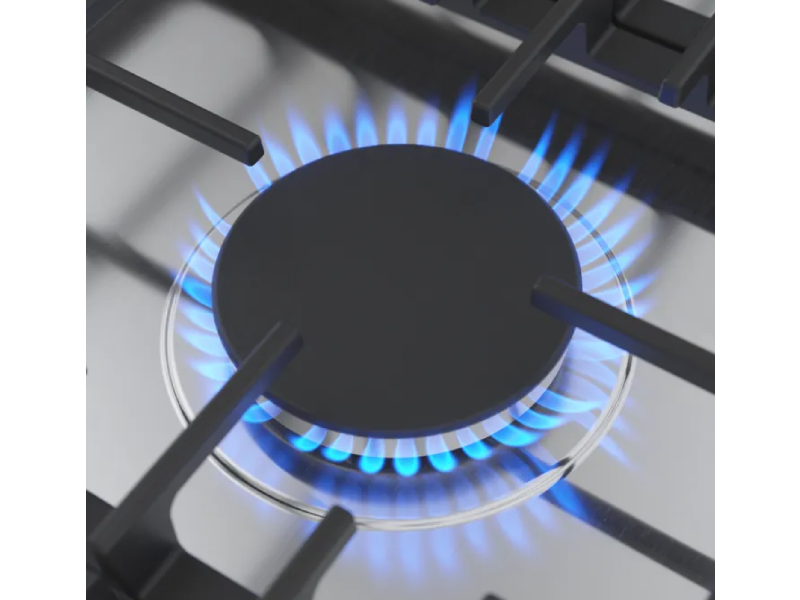

- OptiSim® burner offers more flame control at the lowest settings for precise simmering and melting
General Properties | |
---|---|
Number of Burner | 5 |
Knob color | Stainless steel appearance |
Control location | Front-center |
Sealed burners | Yes |
Valves | Gas |
Ignition system | Electronic; thermocouple flame monitor control |
Surface | Stainless steel |
Grate material | Cast iron |
Grate features | Continuous grates |
Element Performance | |
Total BTU load (NG / LP) | 41,700 / 41,700 |
Power of front left burner (NG / LP) | 3,400 / 3,400 |
Power of back left burner (NG / LP) | 6,000 / 6,000 |
Power of center burner (NG / LP) | 16,000 / 16,000 |
Power of back right burner (NG / LP) | 10,300 / 10,300 |
Power of front right burner (NG / LP) | 6,000 / 6,000 |
TECHNICAL DETAILS | |
Circuit breaker | 15 A |
Volts | 120 V |
Frequency | 60 Hz |
Plug type | 3-prong |
Power cord length | 40" |
Energy source | Natural Gas (factory set) |
Convertible to LP (kit required) | Yes |
Dimensions & Weight | |
Overall appliance dimensions (HxWxD) | 4 1/2" x 37" x 21 1/4" |
Required cutout size (HxWxD) | 2" x 34 15/16" x 19 1/8 |
Minimum distance from counter front | 1 7/8" |
Minimum distance from rear wall | 3" |
Net weight | 57 lbs |
Accessories—Included | |
Included | LP Conversion Kit, OptiSim® Cap |
